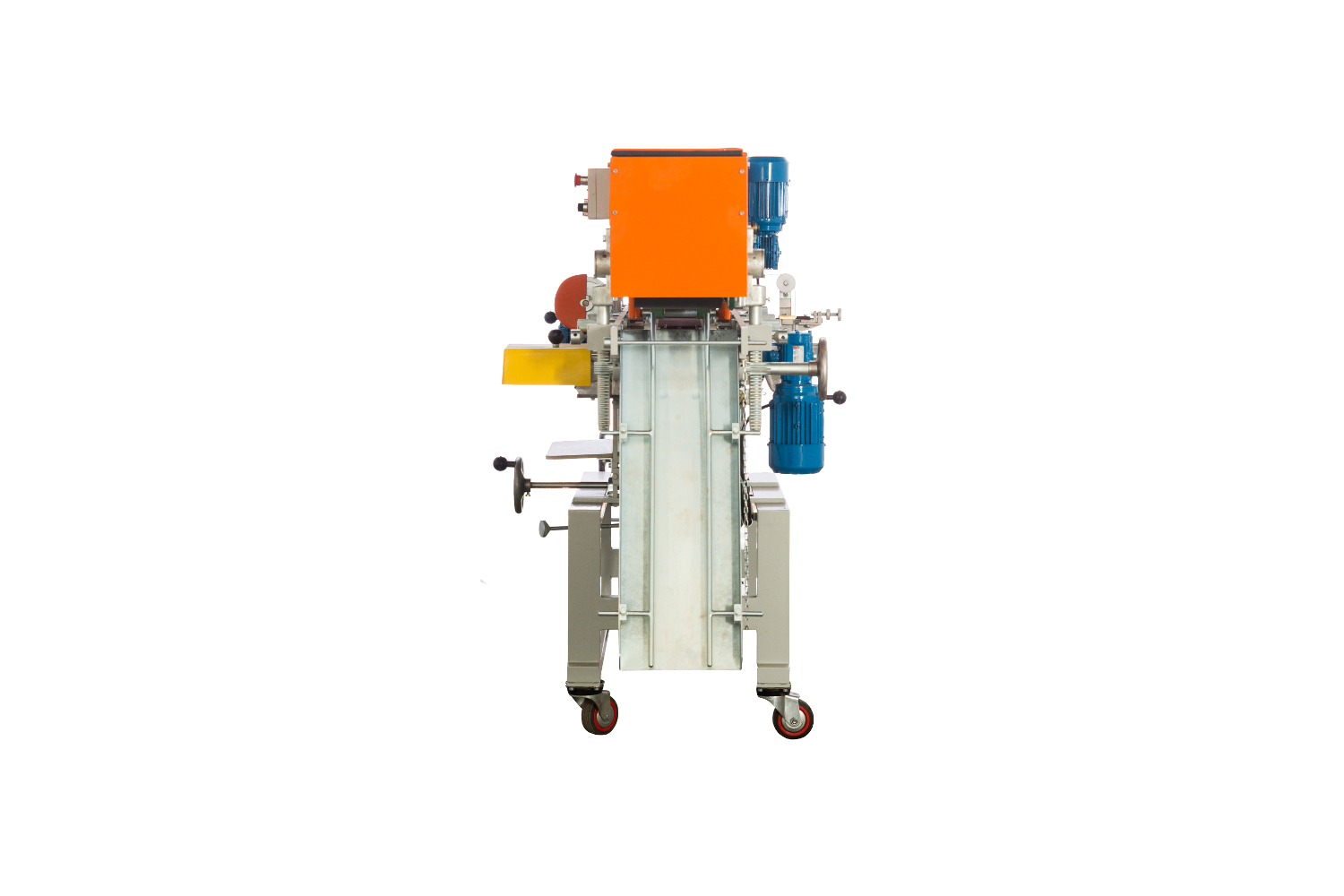

LABELLER Model A2

0%

    Labeling machine of cylindrical container or rolling boat of 65/100 mm. The labeling of the first operation can be done with cold or hot glue and the second operation by tape or glue injection.

    The labeling occurs when the round container passes along a straight path that is driven by belts that guide the containers while they distance them and keep their speed constant.
    The A2 model labellers have an operational versatility of 250 minute boats. It has a variable speed drive that regulates the labeller in the labeling process of the boat, in more or less quantity to be labeled, according to the customer’s need.
    Due to their design they are highly versatile labeling machines, completely accessible, which facilitates their handling and maintenance, complying with the regulations of the C.E.

    Technical data Model A2

    High measures: 1.380 mm.
    Long measures with ramps: 3.240 mm.
    Diameter of the boats admitted: 65/100 mm.
    Work stress: 220/380 V.
    Watts consumption: 4.000 Watts.
    Measure width: 900 mm.
    Weight: 300 Kg.
    Labeling speed frequency variator.
    Potency: 1 KW.

    Other labeling machines that are manufactured

    Model A400

    Labeling machine of cylindrical container or rolling boat of 65/100 mm.

    Model A3-5

    Labeling machine of cylindrical container or rolling boat of 65/150 mm. The first gluing operation can be carried out in cold or hot glue.

    Model A350

    Labeling machine for cylindrical container or 150 ∅ rolling can. Packages of 3 Kg. And 5Kg.
